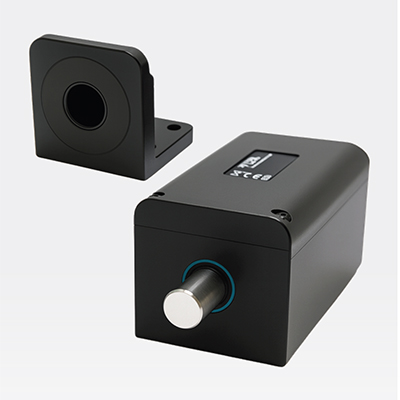

The YG80 (Orca) is a high-security, motordriven locking solution for roller doors, gates, cargo containers, and oversized industrial doors. Engineered for reliability in harsh environments, the YG80 offers exceptional holding force, IP67 weather protection, and full monitoring integration with access-control systems.
High Security
- Concealed mounting bolts with tamper detection
- Holding force exceeding UL1034 highsecurity standard
Environmental Resilience
- IP67 ingress protection
- E-coated aluminium body
- Optional heater for sub-zero climates
Monitoring & Control
- Bolt position (locked/unlocked)
- Door position
- Tamper detection
- Fail-Safe or Fail-Secure selectable
Flexible Mounting
- Horizontal or vertical downwards (only)
- Indoor or outdoor locations
- 3m weather-sealed flying cable
Do not mount it vertically firing up.
Bluetooth Function (Simplified)
- Lets you lock/unlock via the BQT Connect app
- Works only within Bluetooth range
- No keypad, relay, or wired controller needed
- Your phone acts as the key
Operation
- Tap Unlock → bolt retracts
- Tap Lock → bolt extends (when door is closed)
- Requires Toggle or Twin-wire mode
Electrical Parameter
Voltage: 12–24VDC ±15% Standby Current: 40 mA @ 12V/30 mA @ 24V Activating Current: 1.0A @ 12V/0.5A @ 24V Heater Current: Up to 2.0A @ 24VDC Monitor Switch Rating: 24VDC, 0.5A
Environmental Parameter Rating
Operating Temperature: –35 °C (EN 60068-2- 1:2008) to +70 °C (EN 60068-2-2:2008) Corrosion Resistance: Grade 4 (EN 1670:2007)
| Code | Description |
| YG80 | YG80 Orca Lock and Strike Plate |
| YG80-B | YG80 Orca Lock and Strike Plate Bluetooth Version |
