Alpro’s patented AL4400 mechanical electro magnet is specifically designed for securing sliding door mechanisms both automatic and mechanical.
The holding force of the magnet will depend on its fitting arrangement, but in test the average holding force has been shown to be 680Kgs. The installation is simple and the unit provides an additional and reliable locking solution which is superior to traditional electromechanical locking devices.
Features Include
- High Holding Force
- Early Warning Alarm EW Technology
- Built-in MOV Surge Protection
- Low Current Consumption
- 5 Year Guarantee
PLEASE NOTE THIS MAGNET IS ONLY SUITABLE FOR SLIDING DOORS
High Holding Force
Average of 680Kg
Weight
400g

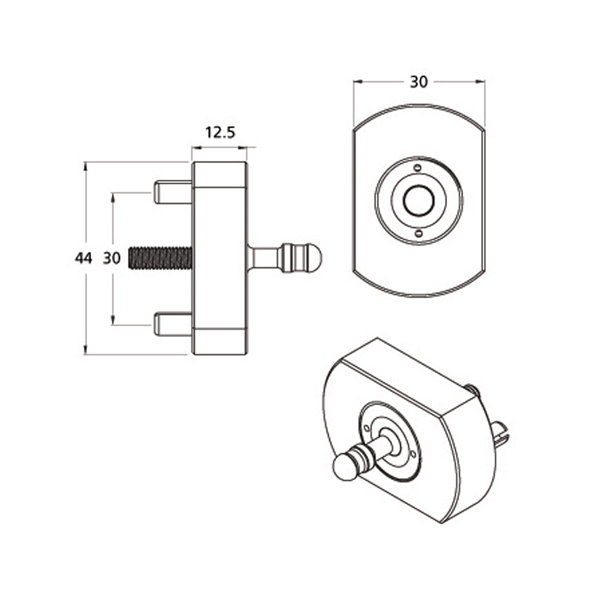

Slimline Dimensions
44mm (L) x 30mm (W) x 16.5mm (H)
Multiple Voltage Input
12V DC / 24V DC
Low Current Consumption
260mA
Early Warning Alarm EW Technology
Magnets are fitted with EW pressure sensors able to send an alarm before access forced open.
Built-in MOV Surge Protection
Surface Mounting for Easy
Retrofit Armature Plate Security
Bracket No Residual Magnetism
Approvals
EN 61000-6-3 : 2021
EN 61000-4-2 : 2009
EN 61000-4-8 : 2010
EN 61000-4-3 : 2020
EN 61000-4-6 : 2014
| Description | Finish | Code |
| Automatic sliding door magnet – 12V DC / 24V DC | Satin Anodised | AL4400 |
